Feature:
Applicable vehicle types: 160 km/h intercity and urban rail transit vehicles

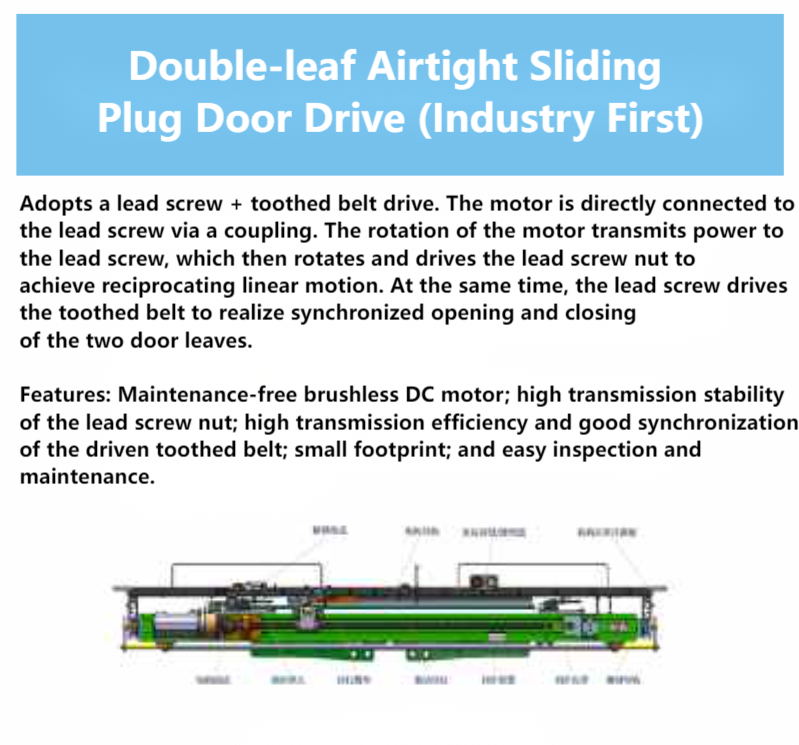

Main components: Lead screw main drive mechanism + double-leaf sandwich door panels + door control unit + emergency unlocking device + auxiliary locking unit
Introduction
The double-leaf electric airtight sliding plug door adopts a dual-leaf synchronized drive and an all-around sealing design. It ensures excellent airtightness, sound insulation, and thermal insulation performance while providing a wide, barrier-free passage, meeting the requirements for high-end clean environments and demanding operating conditions.
Specification
| Product Specification | Value |
| Supply Voltage | DC110V |
| Voltage Fluctuation Range | DC77V ~ DC137.5V |
| Clear Opening Width | (1300-1400) mm |
| Clear Opening Height | 1860 mm |
| Maximum Operating Speed | (120-200) km/h |
| Door Opening Time | 3.0 ± 0.5 s / 3.5 ± 0.5 s |
| Door Closing Time | 3.0 ± 0.5 s / 3.5 ± 0.5 s |
| Opening/Closing Delay Time | Adjustable from 0s to 3s |
| Door Closing Force | ≤150N (adjustable range: 100-300N) |
| Minimum Obstacle Detection Size | 25 × 60 mm (W × H) |
| Thermal Insulation Performance | ≤4.5 W/m²·K |
| Sound Insulation Performance | ≥32 dB |
| Airtightness Rating | ±4 kPa |
Advantage
Explore the Features
