Feature:
Applicable vehicle types: Metro, light rail, and intercity/urban regional vehicles with speeds of 100–200 km/h.

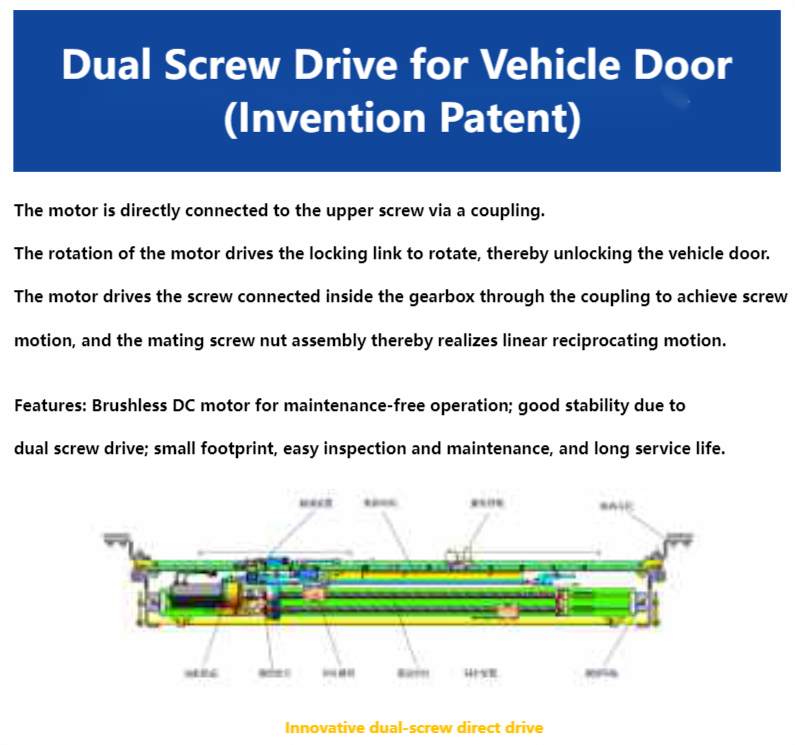

Main components: Dual leadscrew drive mechanism + double-leaf sandwich door panel + door control unit assembly + emergency unlocking device (upgraded auxiliary locking unit).
Introduction
The next-generation sliding plug door features low noise during opening and closing and excellent sealing performance, providing passengers with a better riding environment.
Specification
| Product Parameter | Value |
| Power supply voltage | DC110V |
| Voltage fluctuation range | DC77V ~ DC137.5V |
| Clear opening width | (1300–1400) mm |
| Clear opening height | 1860 mm |
| Maximum operating speed | 120 km/h |
| Door opening time | 3.0 ± 0.5 s |
| Door closing time | 3.0 ± 0.5 s |
| Opening/closing delay time | Adjustable from 0 s to 3 s |
| Door closing force | ≤150 N (adjustable range: 100–300 N) |
| Minimum obstacle for obstacle detection | 25 × 60 mm (width × height) |
| Thermal insulation performance | ≤4.4 W/m²·K |
| Sound insulation performance | ≥32 dB |
| Air tightness specification | Meets ±4 kPa after upgrading the auxiliary locking unit |
Advantage
Explore the Features
